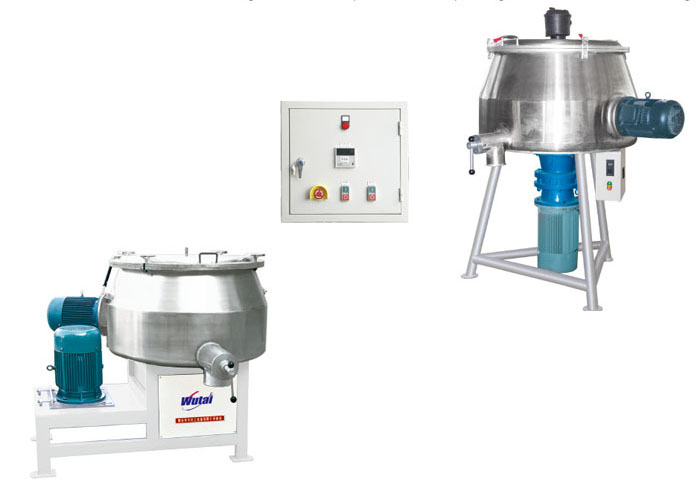

HG系列高速混料机
HG系列高速混料机适用于对多组粒状或块状固体物料进行混合,在进行混合的同时对物料进行破碎。色料助剂分散优良,清机拆卸方便,采用先进密封设计,无粉尘泄露。
主要特点: *易于清机,方便换颜色。 *高效破碎,混合均匀。 *时间预置准确,定时自动控制。 *出料方便,高产出量。 *加装安全保护及电机过载保护等, 操作安全。
HG series horizontal high speed pre-mixer This machine is suitable for mixing solid coarse and lumpish multi-component material. The material will be crushed during mixing. Pigment and chemical auxiliary disperse homogeneously, can be dismounted easily. there is no powder leakage because of superior sealing. Main Features: *Easy cleaning , convenient for color change *Mixing homogeneously and efficiently crushing *Adjustable mixing time preset and controlled accurately *Easy discharging, high output *There is over loading and safety protection for motors, Operation safety
型号及规格Specification
型号Model |
产量/罐Output/tank(kg) |
混合电机Mixing motor(kw) |
破碎电机Crushing motor (kw) |
混合时间Mixing time (Min/container) |
外形尺寸Dimension (L*W*H m) |
HG-100 |
80 |
5.5 |
4 |
4-6 |
Ø 0.7*1.3*1.38 |
HG-150 |
150 |
7.5 |
4 |
4-6 |
Ø 1.2*1.6*1.6 |
HG-300 |
300 |
15 |
5.5 |
4-6 |
Ø 1.3*1.5*1.8 |
HG-500 |
500 |
18.5 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
HG-600 |
600 |
22 |
7.5 |
4-6 |
Ø 1.6*1.6*1.9 |
HG-800 |
650-800 |
30 |
7.5/2 |
4-6 |
Ø 1.9*1.9*2.0 |
HG-1000 |
900-1000 |
45 |
7.5/2 |
4-6 |
Ø 2.0*2.2*2.5 |
|
